Just as printing “Hello, world!” is the first step in learning to program, using a program to drive an LED is the traditional introduction to learning physical programming.

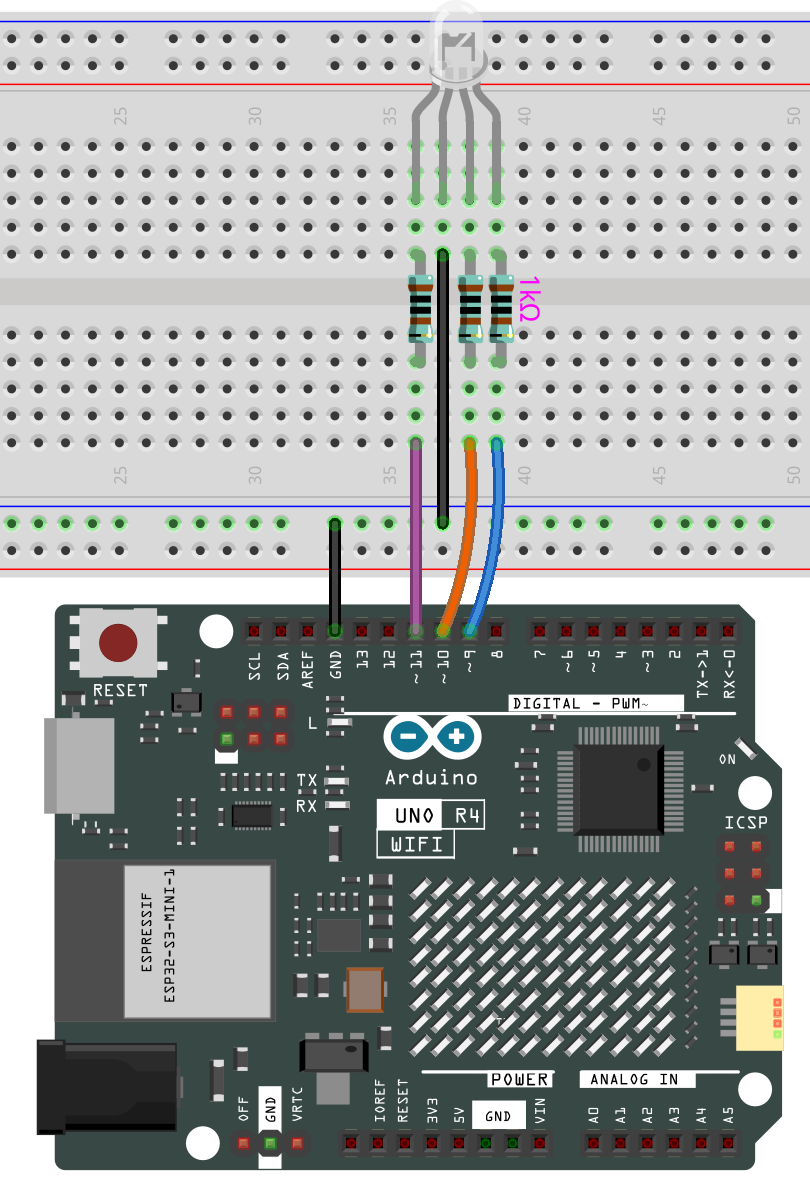

Wiring

Code

Note:

• You can open the file 10-led.ino under the path of Basic-Starter-Kit-for-Arduino-Uno-R4-WiFi-main\10-led.

Note: This is a note box created using HTML.

Code Analysis

Here, we connect the LED to the digital pin 9, so we need to declare an int variable called ledpin at the beginning of the program and assign a value of 9.

constintledPin=9; Now, initialize the pin in the setup() function, where you need to initialize the pin to OUTPUT mode.

voidsetup()
{
pinMode(ledPin,OUTPUT);
}

In loop(), digitalWrite() is used to provide 5V high level signal for ledpin, which will cause voltage difference between LED pins and light LED up.

digitalWrite(ledPin,HIGH);

If the level signal is changed to LOW, the ledPin’s signal will be returned to 0 V to turn LED off.

digitalWrite(ledPin,LOW);

An interval between on and off is required to allow people to see the change, so we use a delay(1000) code to let the controller do nothing for 1000 ms.

delay(1000);
